LTE & GSM Network
4G LTE communication with 2G GSM fallback supports dependable fleet connectivity.

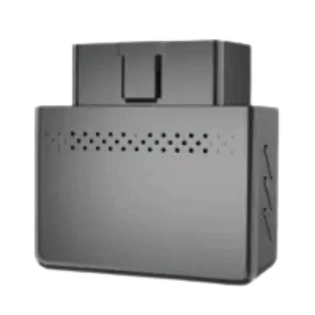

Vehicle Tracker
TL512
Plug In. Track Clearly. Manage Confidently.
LTE Plug-in GNSS Tracker
A compact 4G OBDII vehicle tracker that combines effortless installation, accurate GPS and BDS positioning, driving-behaviour insight and dependable fleet alerts.
TL512
Core capabilities
Essentials That Matter
Practical control, protection and fleet intelligence—built into one connected device.
Effortless Installation
Connect directly to the vehicle OBDII socket without complex wiring.
GPS & BDS Positioning
Complementary satellite systems provide accurate and responsive vehicle positioning.
Driving Behavior Analysis
Detect harsh acceleration, harsh braking, harsh cornering and collision events.
Remote Listen-in
An integrated microphone supports remote monitoring of ambient sounds around the device.
Multiple Alerts
Receive alerts for vehicle movement, speeding, geo-fence activity, battery conditions and power disconnection.
Product details
Built for the way your fleet works.
A compact 4G OBDII vehicle tracker that combines effortless installation, accurate GPS and BDS positioning, driving-behaviour insight and dependable fleet alerts.
LTE & GSM Network
4G LTE communication with 2G GSM fallback supports dependable fleet connectivity.
Effortless Installation
Connect directly to the vehicle OBDII socket without complex wiring.
GPS & BDS Positioning
Complementary satellite systems provide accurate and responsive vehicle positioning.
Driving Behavior Analysis
Detect harsh acceleration, harsh braking, harsh cornering and collision events.
Remote Listen-in
An integrated microphone supports remote monitoring of ambient sounds around the device.
Multiple Alerts
Receive alerts for vehicle movement, speeding, geo-fence activity, battery conditions and power disconnection.
Positioning & Location
TechnologyGPS, BDS
Accuracy<2.5m CEP
Tracking sensitivity-165dBm
Acquisition sensitivity-148dBm cold / -163dBm hot
TTFF (open sky)Hot start <=1sec; cold start <=32sec
Cellular
TechnologyLTE Cat 1 + GSM
FrequencyLTE-FDD: B1/B3/B7/B8/B20/B28; LTE-TDD: B34/B38/B39/B40/B41; GSM: 850/900/1800/1900MHz
Power
Battery50mAh industrial-grade LiCo battery
Input voltage9-36VDC
Interface
LED indicationGNSS (Blue), Cellular (Green)
ConnectorOBDII port
SIMNano-SIM
USB1 x USB Type-C for configuration
Data storage16+16MB
Physical Specification
Dimensions51.0 x 50.0 x 22.0mm
Weight42.0g
Operating Environment
Operating temperature-20°C to +70°C
Operating humidity5% to 95%, non-condensing
Feature
Voice monitoring range<=5 meters
SensorsAccelerometer and gyroscope
Ignition detectionExternal power voltage
ScenariosVehicle movement, speeding, geo-fence, voice monitoring, vehicle battery and power disconnection alerts
Driving behavior analysisHarsh acceleration, harsh braking, harsh cornering, collision
TL512 BrochureBrochure coming soon
