LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
Vehicle Tracker
TL502
A New Dimension of Drive.

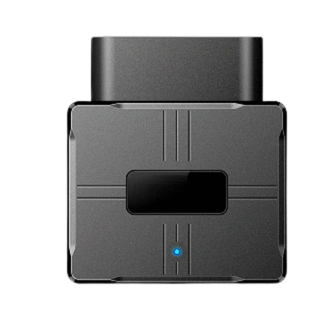

LTE OBDII GNSS Tracker
One plug-in tracker for passenger and commercial vehicles, combining positioning with VIN, fault-code, mileage, fuel and vehicle-status insights.
TL502
Core capabilities
Essentials That Matter
Practical control, protection and fleet intelligence—built into one connected device.
On-Board Diagnostics
Obtain mileage, fault codes, ACC status, fuel consumption, battery voltage, engine speed and more.
GPS & BDS Positioning
Complementary positioning systems display accurate locations on the cloud platform.
Driving Behavior Analysis
Receive alerts for four or eight dangerous driving behaviours, depending on your needs.
Multiple Alerts
Instant alerts for vehicle faults, overspeed, ignition, collisions and geo-fence events.
Effortless Installation
Plug the device into the OBDII socket—no professional installation required.
TL502 in focus
See the capability. Picture the result.
Product details
Built for the way your fleet works.
One plug-in tracker for passenger and commercial vehicles, combining positioning with VIN, fault-code, mileage, fuel and vehicle-status insights.
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
On-Board Diagnostics
Obtain mileage, fault codes, ACC status, fuel consumption, battery voltage, engine speed and more.
GPS & BDS Positioning
Complementary positioning systems display accurate locations on the cloud platform.
Driving Behavior Analysis
Receive alerts for four or eight dangerous driving behaviours, depending on your needs.
Multiple Alerts
Instant alerts for vehicle faults, overspeed, ignition, collisions and geo-fence events.
Effortless Installation
Plug the device into the OBDII socket—no professional installation required.
Positioning & Location
TechnologyGPS, GLONASS, BDS, GALILEO, AGPS, LBS
Accuracy<2.5m CEP
Tracking sensitivity–165dBm
Acquisition sensitivity–148dBm cold; –156dBm hot
TTFF (open sky)Hot start ≤2s; cold start ≤38s
Cellular
Technology4G Cat 1, 2G (GSM); Cat M1/NB2 configuration available
FrequencyLTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66; GSM: B2/B3/B5/B8; Cat M1/NB2: B2/B4/B5/B12/B13
Power
Battery50mAh / 3.7V
Input voltage9–33VDC
Power consumptionStandby ≤5mA
Operating Environment
Operating temperature–20°C to +70°C
Operating humidity5% to 95%, non-condensing
Physical Specification
Dimensions61.0 × 52.0 × 26.0mm
Weight55g
Interface
LED indicationStatus (Blue)
SIMNano-SIM
Voltage detection0–33V (±0.3V)
Memory capacity1000 GPS data entries
USBMicro USB
GNSS antennaInternal
Bluetooth antennaInternal
OBD Port
ConnectionOBDII port
DataK-Line, CAN Bus
ProtocolsISO 9141-2; ISO 14230-4 KWP; ISO 15765-4 CAN (11/29-bit, 250/500 kbaud); SAE J1939 CAN (250/500 kbaud)
Feature
SensorsAccelerometer
ScenariosCar fault, overspeed, ignition, collision, geo-fence, power-on, pull-out and engine idling alerts
Driving behavior analysisHarsh acceleration, harsh braking, harsh cornering, collision
BluetoothBLE 4.2
Configuration supportSMS, Tracksolid Pro, PC Tools
CertificationCE, FCC, RoHS
TL502 BrochureBrochure coming soon
