LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
Vehicle Tracker
TL110C
One tracker. Any vehicle. Total safety.

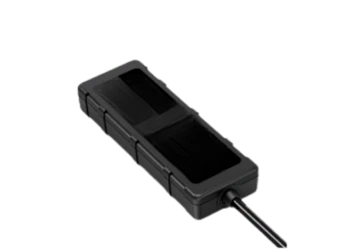

LTE Vehicle Terminal
A discreet wide-voltage tracker that combines real-time visibility, remote immobilization and jamming detection for motorcycles, cars and commercial fleets.
TL110C
Core capabilities
Essentials That Matter
Practical control, protection and fleet intelligence—built into one connected device.
Remote Cut-Off (Fuel/Power)
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
9-90V Operating Voltage
Wide operating voltage range is suitable for a huge variety of vehicles, including industrial equipment, scooters, golf carts, and more.
Vehicle Battery Protection
Disconnect from the vehicle's power supply and operate on its internal battery when the device detects the vehicle battery drops to a critical level.
IP65 Water & Dust Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
GNSS/LTE Jamming Detection
Issue an alarm, trigger a relay for fuel and power cutoff control after the device detects GNSS/LTE jamming (configurable via commands).
TL110C in focus
See the capability. Picture the result.
Product details
Built for the way your fleet works.
A discreet wide-voltage tracker that combines real-time visibility, remote immobilization and jamming detection for motorcycles, cars and commercial fleets.
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
Remote Cut-Off (Fuel/Power)
Immobilize a vehicle by cutting its power source or fuel supply through an installed relay.
9–90V Operating Voltage
A wide voltage range suits industrial equipment, scooters, golf carts and many other vehicles.
Vehicle Battery Protection
Disconnect from vehicle power and operate on the internal battery when voltage drops to a critical level.
IP65 Water & Dust Resistance
Rugged protection supports reliable performance in demanding environments.
GNSS/LTE Jamming Detection
Issue an alarm and trigger relay-based fuel or power cutoff when GNSS or LTE jamming is detected.
Positioning & Location
TechnologyGPS, BDS, LBS
Accuracy<2.5m CEP
Tracking sensitivity–165dBm
Acquisition sensitivity–148dBm
TTFF (open sky)Hot start ≤2sec; cold start ≤38sec
Cellular
TechnologyLTE Cat 1 & GSM
FrequencyLTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28; LTE-TDD: B34/B38/B39/B40/B41; GSM: B2/B3/B5/B8
Power
Battery270mAh / 3.7V industrial-grade Li-Polymer battery
Input voltage9–90VDC
Power consumptionStandby <5mA
Operating Environment
Operating temperature–20°C to +70°C
Operating humidity5% to 95%, non-condensing
IP ratingIP65
Physical Specification
Dimensions94(L) × 34(W) × 15(H)mm
Weight44g
Interface
LED indicationGNSS (Blue), Cellular (Green), Power (Red)
SIMNano-SIM
Digital I/Os1 × ACC, 1 × Relay
Voltage detection0–90V (±0.3V)
Data storage3000+ GNSS data entries
USBType-C (firmware upgrade)
GNSS antennaInternal
Feature
SensorsAccelerometer
ScenariosVehicle movement, speeding, geo-fence, vehicle battery, LTE jamming and GPS jamming alerts
Driving behavior analysisHarsh acceleration, harsh braking, harsh cornering, collision
Configuration supportSMS, PC Tools, Tracksolid Pro, Type-C
CertificationCE, FCC, RoHS
TL110C BrochureBrochure coming soon
