LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
Asset Tracker
TL303PRO
Reliable. Durable. Maintenance-Free.

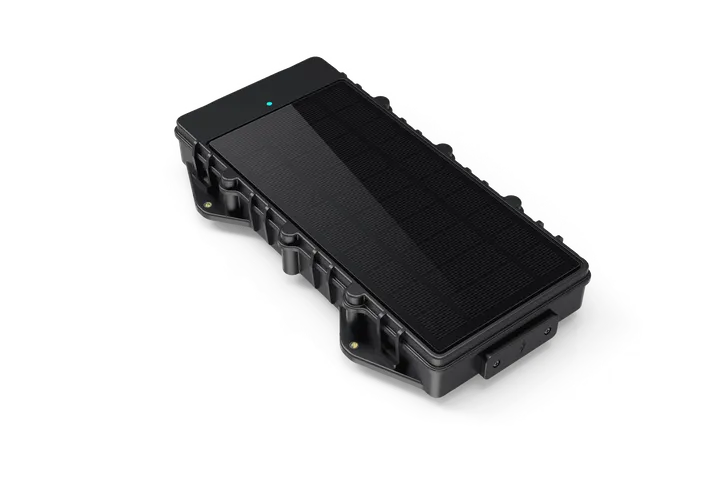

LTE Solar Powered GNSS Tracker
Smart, self-sustaining asset tracking with solar and magnetic charging, flexible work modes and durable outdoor protection.
TL303PRO
8M+Units Delivered Annually
180+Countries and Regions
15,000+Global Partners
Core capabilities
Essentials That Matter
Practical control, protection and fleet intelligence—built into one connected device.
GPS, BDS & LBS Positioning
Multiple positioning systems accurately display locations on the cloud platform.

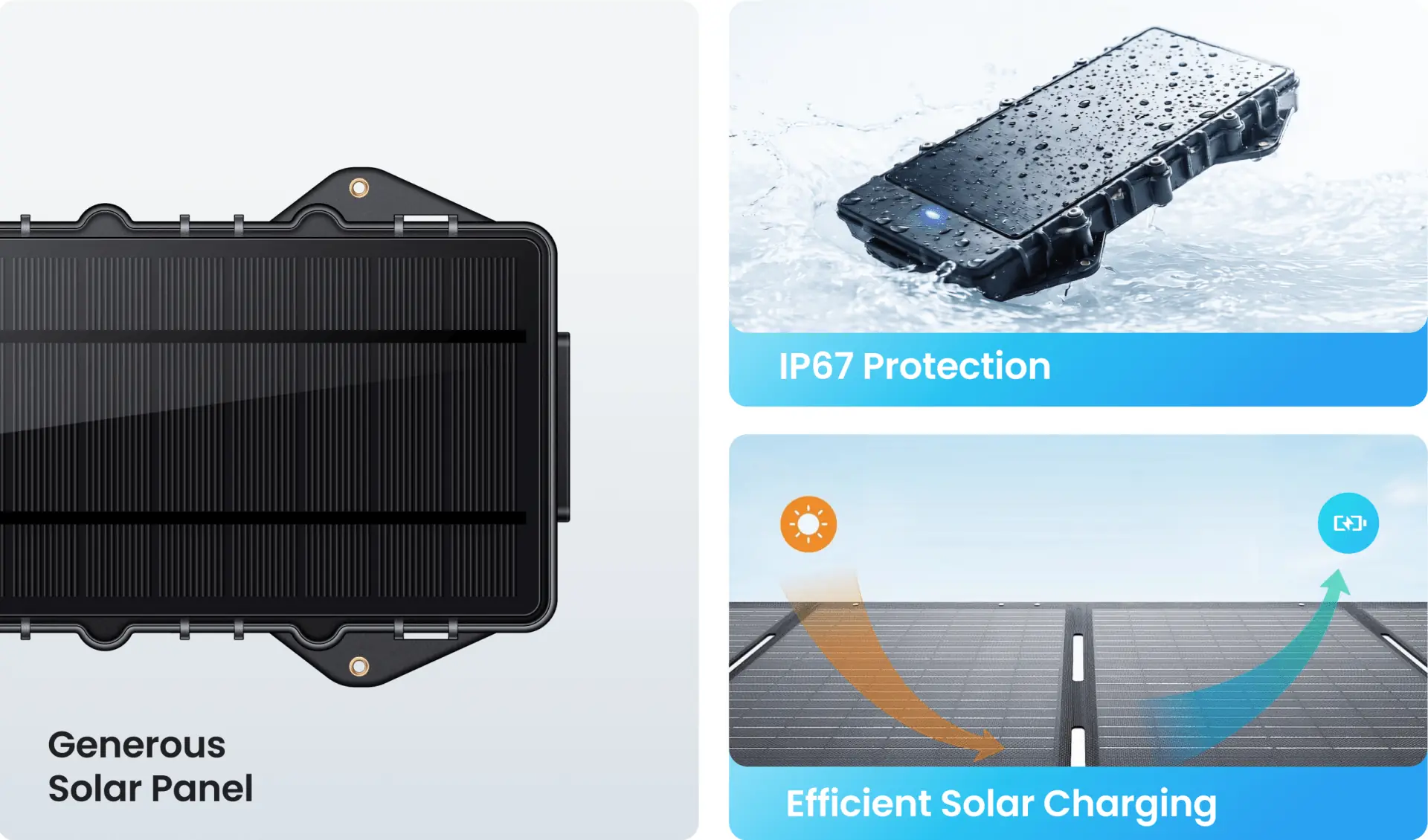

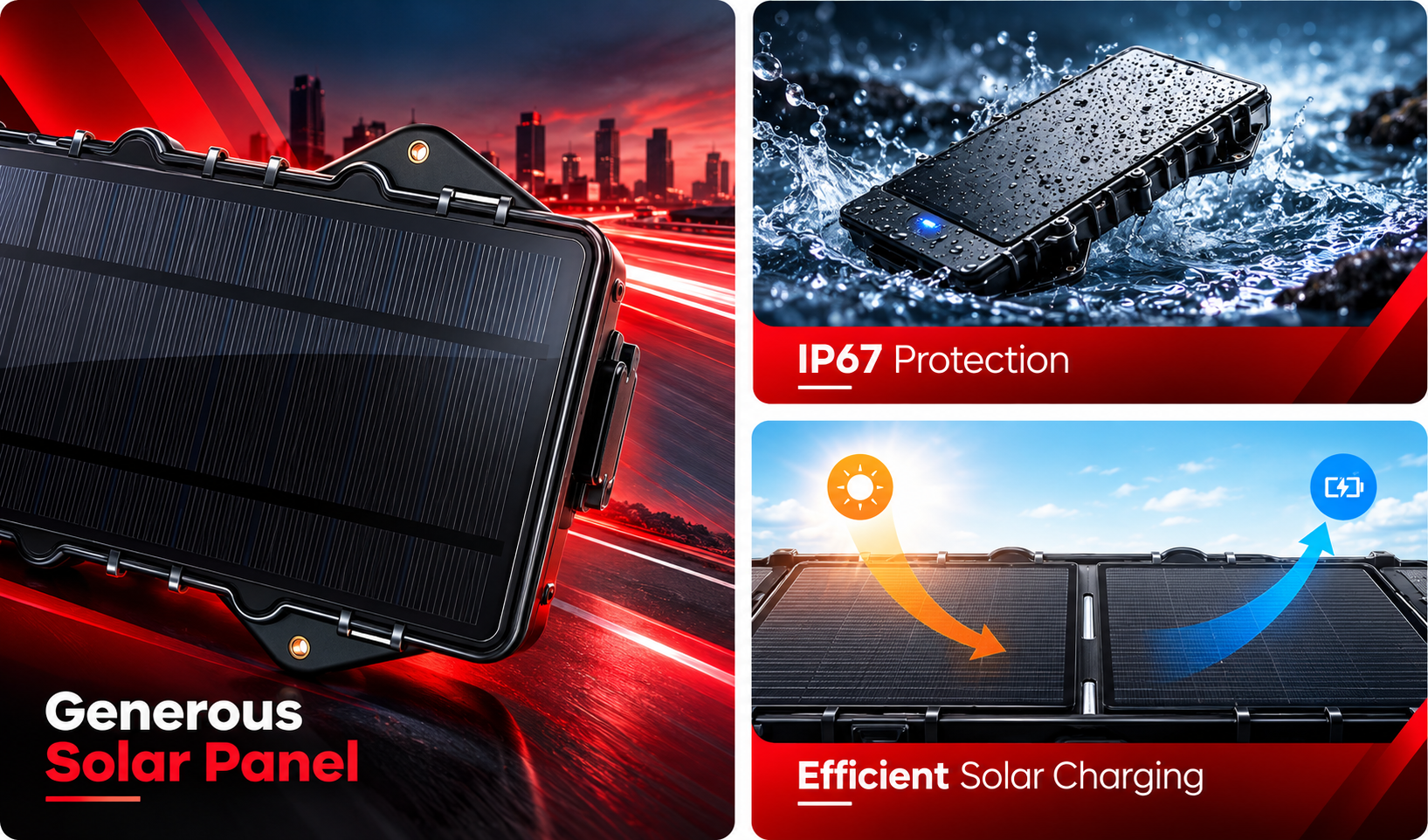

Solar & Magnetic Charging
Recharge easily through the integrated solar panel or magnetic charger.
IP67 Dust & Water Resistance
Rugged protection supports reliable performance in tough outdoor conditions.
Multiple Working Modes
Configure working behaviour to match actual tracking and battery-life requirements.
Bluetooth Accessory Compatibility
Optional peripherals can monitor fuel consumption, door status and more.
TL303PRO in focus
See the capability. Picture the result.
Product details
Built for the way your fleet works.
Smart, self-sustaining asset tracking with solar and magnetic charging, flexible work modes and durable outdoor protection.
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
GPS, BDS & LBS Positioning
Multiple positioning systems accurately display locations on the cloud platform.

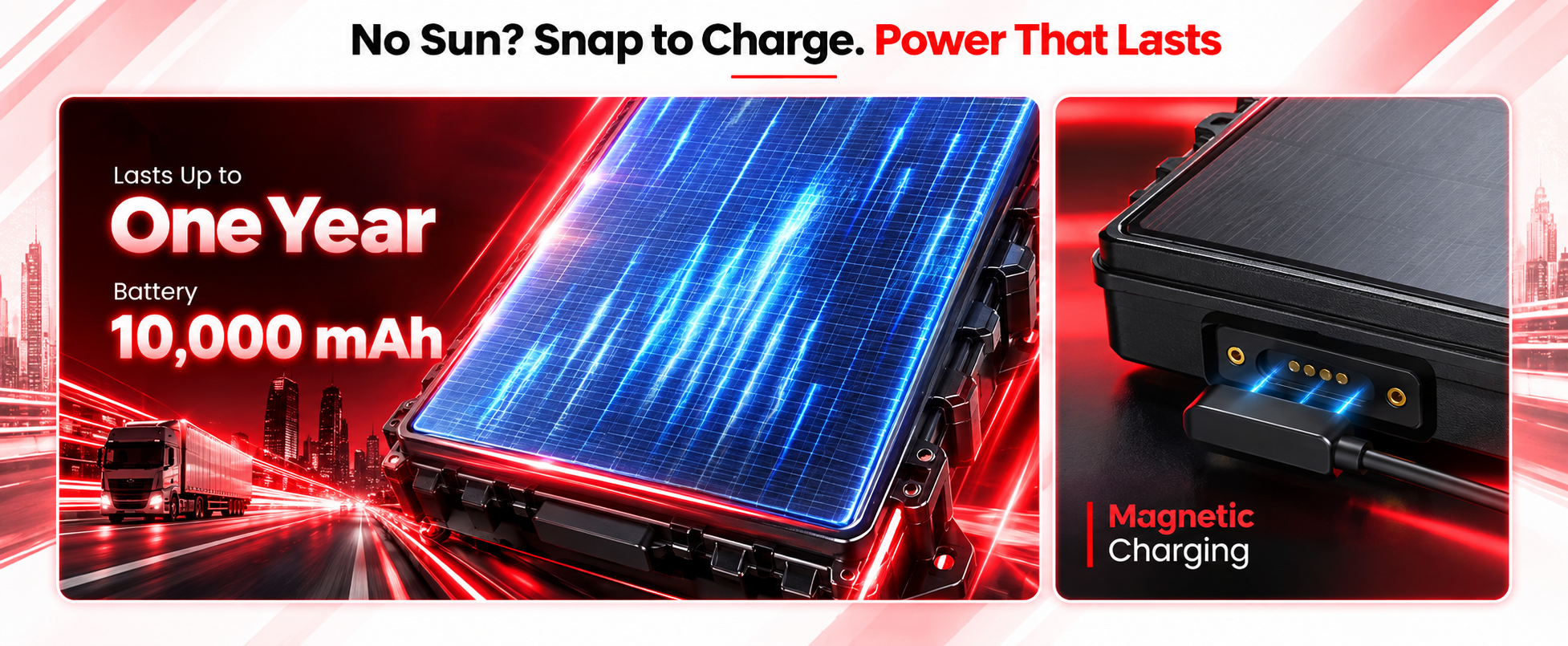

Solar & Magnetic Charging
Recharge easily through the integrated solar panel or magnetic charger.
IP67 Dust & Water Resistance
Rugged protection supports reliable performance in tough outdoor conditions.
Multiple Alerts
Receive device-removal, vibration, abnormal temperature and humidity alerts.
Multiple Working Modes
Configure working behaviour to match actual tracking and battery-life requirements.
Bluetooth Accessory Compatibility
Optional peripherals can monitor fuel consumption, door status and more.
RFID Broadcast
Optional active RFID access enables nearby device information retrieval.
Positioning & Location
TechnologyGPS, BDS, LBS
Accuracy<2.5m CEP
Tracking sensitivity–165dBm
Acquisition sensitivity–148dBm
TTFF (open sky)Hot start ≤1s; cold start ≤32s
Cellular
TechnologyLTE Cat 1, GSM
FrequencyLTE-FDD: B1/B3/B7/B8/B20/B28; LTE-TDD: B38/B40; GSM: E-GSM900, DCS1800
Power
Battery10,000mAh / 3.7V rechargeable industrial Li-Polymer
Solar power5V / 400mA at STC
Magnetic charger5V / 2A
Working modesTiming, intelligent and power-saving
Battery life10 days to 1 year
Interface
LED indicationCellular (Green), Power (Red)
SIMNano-SIM
Memory capacity1000 GPS data entries
Tamper proofHall effect sensor
USB4-pin magnetic wire
AntennasInternal GNSS and Bluetooth
Operating Environment
Temperature–20°C to +70°C
Humidity5% to 95%, non-condensing
IP ratingIP67
Physical Specification
Dimensions200.0 × 115.0 × 25.0mm (mount base excluded)
Weight423g
Feature
SensorsAccelerometer, buzzer, Hall effect sensor, NTC
ScenariosLow battery, tamper, vibration, SIM change, optional temperature and humidity alerts
BluetoothBLE 5.0
RFID2.4GHz
Configuration supportAPP, Tracksolid Pro, PC Tools, SMS
CertificationCE, FCC, PTCRB
Optional sensorK7800 environmental sensor
