Industry-Leading Battery Life
A 10,000mAh battery delivers 7 days to 2 years of operation for low-maintenance asset monitoring.
Asset Tracker
TL301
Stilled Watcher, Silent Protector

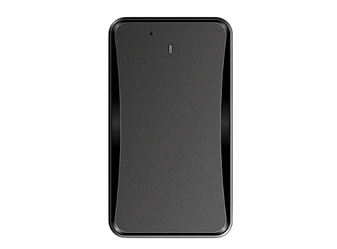

Portable Asset Tracker
Long-life precision tracking, global connectivity and flexible magnetic installation for assets that need discreet, dependable protection.
TL301
Core capabilities
Essentials That Matter
Practical control, protection and fleet intelligence—built into one connected device.
Global Positioning & Dual Network Coverage
GPS, BDS and LBS positioning with 4G LTE and 2G GSM connectivity supports urban and remote tracking.
Tool-Free Installation & Discreet Design
A strong magnetic base attaches to metal surfaces without drilling or wiring.
Comprehensive Security & Alerts
Real-time tamper, vibration and low-battery alerts support a fast response to critical events.
Remote Listen-in (VoLTE)
An inconspicuous microphone enables remote audio monitoring around the device.
Strong Magnetic Base
Fasten the tracker securely to most metal surfaces with near-zero installation effort.
TL301 in focus
See the capability. Picture the result.
Product details
Built for the way your fleet works.
Long-life precision tracking, global connectivity and flexible magnetic installation for assets that need discreet, dependable protection.
Industry-Leading Battery Life
A 10,000mAh battery delivers 7 days to 2 years of operation for low-maintenance asset monitoring.
Global Positioning & Dual Network Coverage
GPS, BDS and LBS positioning with 4G LTE and 2G GSM connectivity supports urban and remote tracking.
Tool-Free Installation & Discreet Design
A strong magnetic base attaches to metal surfaces without drilling or wiring.
Comprehensive Security & Alerts
Real-time tamper, vibration and low-battery alerts support a fast response to critical events.
Bluetooth Setup & Flexibility
BLE 5.0 configuration supports fast on-site adjustments from the iOS app.
All-Weather Durability
A –20°C to +70°C range and IPX5 rating support reliable outdoor operation.
Remote Listen-in (VoLTE)
An inconspicuous microphone enables remote audio monitoring around the device.
Strong Magnetic Base
Fasten the tracker securely to most metal surfaces with near-zero installation effort.
GNSS
SystemGPS, BDS, LBS
Accuracy<2.5m CEP
Tracking sensitivity–165dBm
Acquisition sensitivity–148dBm
TTFF (open sky)Hot start ≤1sec; cold start ≤32sec
Cellular
NetworkLTE / GSM
FrequencyLTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66; GSM: 850/900/1800/1900MHz
Power
Battery10,000mAh / 3.7V rechargeable industrial Li-Polymer
ModesTiming, intelligent and battery-saving positioning
Battery life7 days to 2 years
Interface
LED indicationStatus (Red), Battery (Blue)
SIMMicro-SIM
Memory capacity1000 GPS data entries
Tamper proofPressure-sensitive button
USBMicro USB
AntennasInternal GNSS and Bluetooth
Physical Specification
Dimensions108.5 × 61.1 × 30.0mm
Weight260g
MountingMagnet or straps
Operating Environment
Temperature–20°C to +70°C
Humidity5% to 95%, non-condensing
IP ratingIPX5
Feature
Voice monitoring range≤5m
Sensors3-axis accelerometer
ScenariosLow battery, tamper, vibration, cover removal, power-off, geo-fence and optional environmental alerts
BluetoothBLE 5.0
Configuration supportBluetooth, Tracksolid Pro, PC Tools, SMS
CertificationCE, FCC
TL301 BrochureBrochure coming soon
