Video Surveillance
Powerful LTE connectivity enables live monitoring of the vehicle interior and exterior through an online platform, with critical clips available for on-demand remote playback.
AI Dashcam
TLD-450
From capture to sense to safeguard.

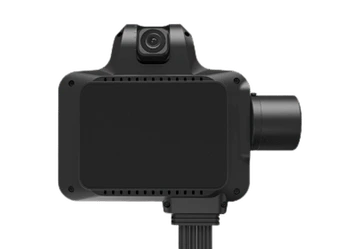

Multi-Channel AI DashCam
TLD-450 enhances fleet safety with full multi-channel coverage and visual AI. It does more than record: it interprets driving events, warns teams and helps protect drivers, vehicles and cargo. Backed by more than 8 million units delivered annually across 180+ countries and regions and 15,000+ global partners, Timeline Telematics provides scalable OEM/ODM and third-party platform integration for connected, safe and efficient fleets.
TLD-450
8M+Units Delivered Annually
180+Countries and Regions
15,000+Global Partners
Core capabilities
Essentials That Matter
Practical control, protection and fleet intelligence—built into one connected device.

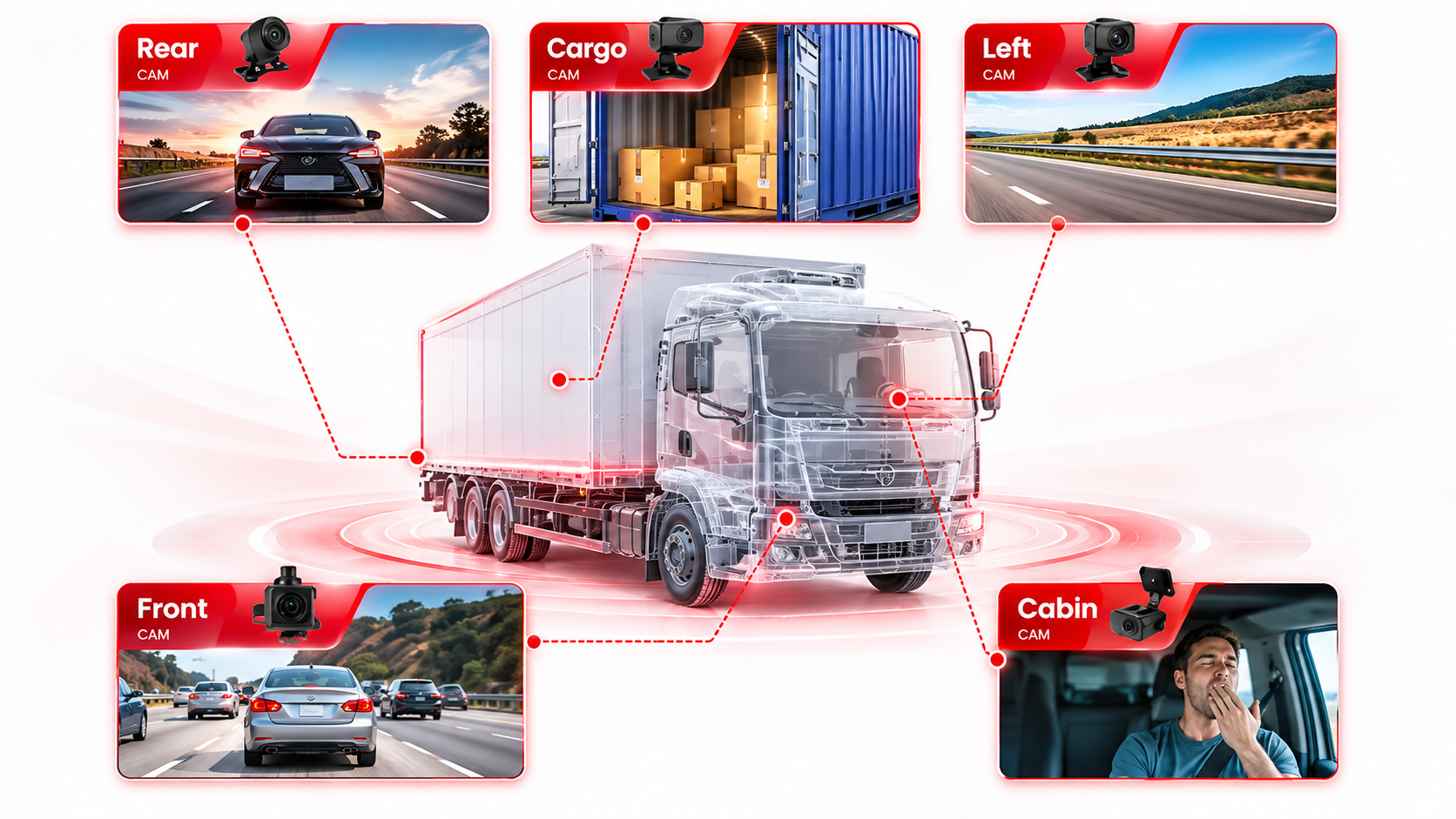

Multi-Channel Recording
Configure multiple cameras to monitor different angles and provide a fuller view of the vehicle and its surroundings.
Visual AI Algorithms
ADAS and optional DMS algorithms provide practical tools that improve road safety, driver safety and compliance.
Dual Mode Positioning
Use GPS and BDS signals to locate vehicles and collect position, speed and trip data for analysis.
Vehicle Immobilization
Cut vehicle fuel or power through Tracksolid Pro while the vehicle is moving below 20km/h, supporting fast action if a fleet vehicle is stolen.
Expanded Storage
Dual microSD card slots provide up to 512GB of onboard storage and support up to seven days of simultaneous five-camera recording.
TLD-450 in focus
See the capability. Picture the result.
Product details
Built for the way your fleet works.
TLD-450 enhances fleet safety with full multi-channel coverage and visual AI. It does more than record: it interprets driving events, warns teams and helps protect drivers, vehicles and cargo. Backed by more than 8 million units delivered annually across 180+ countries and regions and 15,000+ global partners, Timeline Telematics provides scalable OEM/ODM and third-party platform integration for connected, safe and efficient fleets.
Video Surveillance
Powerful LTE connectivity enables live monitoring of the vehicle interior and exterior through an online platform, with critical clips available for on-demand remote playback.
Multi-Channel Recording
Configure multiple cameras to monitor different angles and provide a fuller view of the vehicle and its surroundings.
Visual AI Algorithms
ADAS and optional DMS algorithms provide practical tools that improve road safety, driver safety and compliance.
Dual Mode Positioning
Use GPS and BDS signals to locate vehicles and collect position, speed and trip data for analysis.
Multiple Alerts
Record and upload video clips or still images for configurable events including speeding and SOS button activation.
Vehicle Immobilization
Cut vehicle fuel or power through Tracksolid Pro while the vehicle is moving below 20km/h, supporting fast action if a fleet vehicle is stolen.
Extension Interface
RS232, TTL and other ports support optional accessories including fuel and temperature sensors.
Expanded Storage
Dual microSD card slots provide up to 512GB of onboard storage and support up to seven days of simultaneous five-camera recording.
Cellular
Technology4G LTE Cat 4, 3G (WCDMA), 2G (GSM)
JC450-LAFDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66; TDD-LTE: B40; WCDMA: B1/B2/B4/B5/B8; GSM: B2/B3/B5/B8
JC450-NAFDD-LTE: B2/B4/B5/B12/B13/B14/B66; WCDMA: B2/B4/B5
JC450-EUFDD-LTE: B1/B3/B5/B7/B8/B20/B28; TDD-LTE: B38/B40/B41; WCDMA: B1/B5/B8; GSM: B3/B8
GNSS
Positioning systemGPS, BDS, AGPS
Camera
Front camera (main)1920 × 1080 / 25FPS / F2.0 / full color / 80° HFoV
Video format.ts / .mp4
Power
Input voltageDC 9–30V
Operating Environment
Operating temperature–20°C to +70°C
Storage temperature–30°C to +85°C
Interface
LED indicationRed (Power), Blue (Cellular), Green (GNSS)
SIMNano-SIM
External memory2 × TF cards, up to 256GB each (512GB total)
USBType-C
WiFi2.4GHz; AP Mode, STA Mode and WiFi Direct
BluetoothBLE 4.0
MicrophoneSupported
SpeakerSupported
Digital I/Os2 × SOS; 1 × Relay; 2 × reserved inputs
Analog I/Os1 × CVBS-OUT
Serial ports1 × RS232; 1 × TTL
Sensor3-axis accelerometer
Feature
ADASFCW, HMW, LDW
DMS (optional)Phone use, smoking, distraction, yawning, eyes closed and no-face detection
Additional AI optionsFacial recognition and seatbelt detection require the JC171 AI camera
Configuration supportGPRS, SMS, memory card and APP
Firmware updateUSB cable, memory card and OTA
CertificationCE, FCC, PTCRB, RoHS and AT&T
Physical Specification
Dimensions114.0 × 113.0 × 33.0mm
Weight374g
Standard Packing
TLD-450 unit1
Power cable1
SOS button1
Mount base1
Double-sided adhesive1
Screws1 set
Screwdriver1
Optional Configuration
JC171 AI CameraDriver monitoring, facial recognition and seatbelt detection
CI021280 × 720 / 15FPS / F2.5 / color by day and monochrome in dim light / 135° HFoV
CI011280 × 720 / 15FPS / F2.0 / color by day and monochrome in dim light / 100° HFoV
CI031280 × 720 / 15FPS / F2.4 / color by day and monochrome in dim light / 119° HFoV
CI041280 × 720 / 15FPS / F2.4 / color by day and monochrome in dim light / 119° HFoV
CD021280 × 720 / 15FPS / F2.0 / monochrome / 56° HFoV
CE011280 × 720 / 15FPS / F2.0 / full color / IP67 / 125° HFoV
CE021280 × 720 / 15FPS / F2.0 / full color / IP67 / 111° HFoV
Relay12V or 24V
TLD-450 BrochureBrochure coming soon
