Dual 1080P Cameras
Built-in 1080P road camera with 120° view and 1080P cabin camera with 135° view.
Mobile DVR
TQM-8102SP
Two views built in. Four channels when you need more.

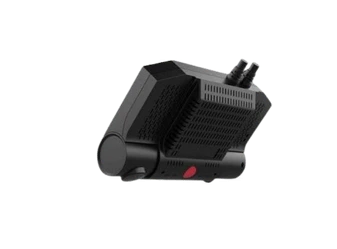

2-CH 1080P 4G GPS WiFi Car DVR
A certified in-vehicle DVR with built-in road and cabin cameras, 4G live viewing, GPS, WiFi, protected dual-card storage and optional four-channel expansion.
TQM-8102SP
Core capabilities
Essentials That Matter
Practical control, protection and fleet intelligence—built into one connected device.
Up to Four Channels
Add two external cameras for a total of four video channels.
4G Remote Live View
View vehicles remotely on iPad, iPhone, Android devices and PCs.
GPS & WiFi
Built-in GPS positioning and WiFi simplify tracking, local access and setup.
Protected Dual TF Storage
Two lock-protected TF card slots support up to 512GB total storage.
Platform Integration
Supports CMS, Wialon and SDK/API integration with third-party fleet software.
TQM-8102SP in focus
See the capability. Picture the result.
Product details
Built for the way your fleet works.
A certified in-vehicle DVR with built-in road and cabin cameras, 4G live viewing, GPS, WiFi, protected dual-card storage and optional four-channel expansion.
Dual 1080P Cameras
Built-in 1080P road camera with 120° view and 1080P cabin camera with 135° view.
Up to Four Channels
Add two external cameras for a total of four video channels.
4G Remote Live View
View vehicles remotely on iPad, iPhone, Android devices and PCs.
GPS & WiFi
Built-in GPS positioning and WiFi simplify tracking, local access and setup.
Protected Dual TF Storage
Two lock-protected TF card slots support up to 512GB total storage.
Platform Integration
Supports CMS, Wialon and SDK/API integration with third-party fleet software.
Built-in Speaker
Provides device status prompts and spoken instructions received from the server.
Fast Installation
Mount quickly on the windscreen using the supplied 3M adhesive.
Video & Camera
ProcessorNovaTek high-performance processor
CompressionH.265
Front camera1080P, 120° wide view
Cabin camera1080P, 135° wide view
Expansion2 optional external channels; 4 channels total
OSDDate/time, vehicle ID, user ID and customizable information
Recording & Storage
Storage2 × TF cards; up to 512GB total
ProtectionSpecial lock protects recorded card data
RecordingFTP backup and mobile local MP4 recording
PlaybackMobile APP and PC; GPS track playback supported
Connectivity
Mobile4G FDD-LTE / WCDMA; TD-LTE/FDD-CTLTE optional
GPSBuilt in
WiFiAP mode by default; configuration and download supported
PlatformsCMS, Wialon, SDK and API integration
ClientsiPad, iPhone, Android and PC remote view
Interface & Alarm
SpeakerWorking status and server instruction prompts
IndicatorsGPS, REC, 4G, WiFi and SOS

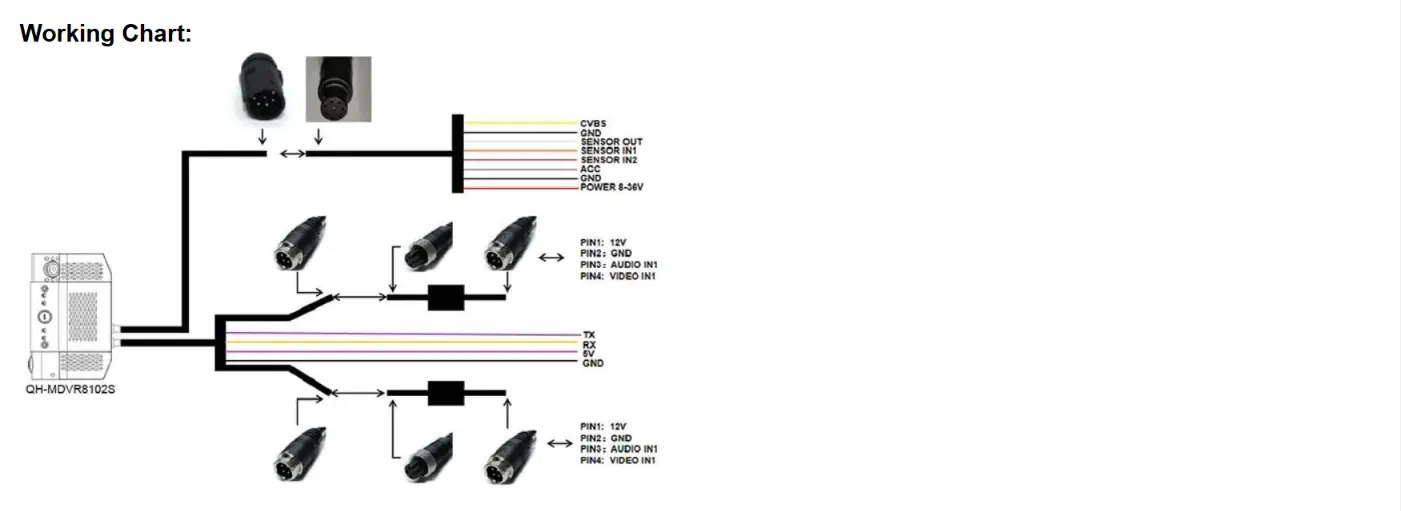

Power cable3-pin
Function cable3-pin; 2 × IO-IN, 1 × IO-OUT
Cameras4-pin aviation connectors
RS232Optional
AlarmSOS and collision events; optional picture/video upload
Power
Input voltage8–36VDC
Standby12V / 10mA
Collision wake-upAlarm and record within 10 seconds while in standby
Installation & Compliance
Mounting3M windscreen sticker
CertificationCE, FCC, EN50155 and more
LanguageChinese, English and customization
MOQFrom 1 unit
TQM-8102SP BrochureBrochure coming soon
